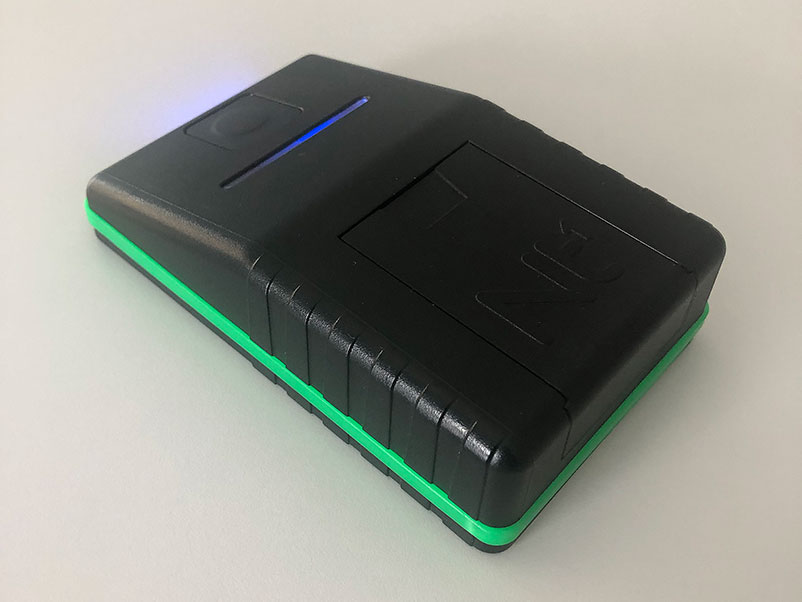

The heart of the TECNATIVES ® Nt System is the Nt Core – a novel pulse generator for the entire TECNATIVES ® Nt System. It is used to generate, measure and optimise nerve and muscle fibre moods on the basis of body-like impulses.

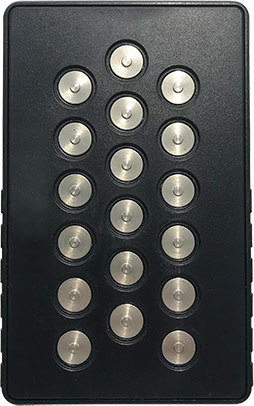

The Nt Core is attached to the Nt Suit by means of magnetic contact and additionally secured with a Velcro ® fastener. Connected to an Apple iOS device via Bluetooth ® , it generates the necessary electrical impulses. The Nt Core is powered by a commercially available battery that is rechargeable and replaceable.
TECHNICAL SPECIFICATION
| Colour |
Housing colour: black Coloured rings for group training: black, green, blue, blue, yellow, yellow, red, violet, orange, grey |
| Sizes & Weight |
Height: 30.4 mm Width: 73.3 mm length: 118.3 mm Weight (without battery): 154 grams |
| Protection against dust and splash water | IP44 |
| Material |
Use of medical-compliant materials;
Process according to ZPMV2 and UL94/V0; Circuit board parts RoHS and REACH compliant. |
| External buttons, connectors and display | Status display (illuminated display) shows additional Nt Core states (e. g. standby, stimulation phase, update etc.) / Connection to Nt Suit via magnetic connector / integrated anti-rotation protection. |
| Power supply and battery | External lithium-ion battery / Rated voltage: 7.4 V DC / Minimum capacity: 750mAh / Rechargeable by external charger / Service life: up to 12 months |
| Communication port | Bluetooth Smart 4.0 |
| Software update | Integrated over-the-air update functionality |
| Operating conditions |
Temperature: +10°C to +40°C (50°F to 104°F) Gradient: 10°C/h (50°F/h) no condensation Humidity: 5% to 80% (25°C/77°F) no condensation |
| Storage conditions |
Temperature: +10°C to +40°C (50°F to 104°F) Gradient: 10°C/h (50°F/h) without condensation Humidity: 5% to 95% (25°C/77°F) no condensation |
